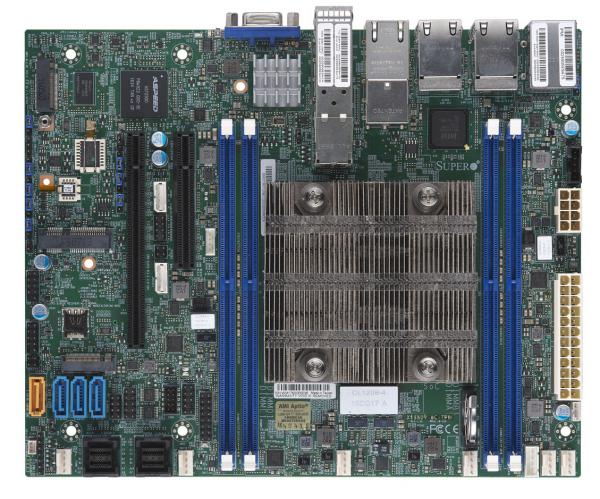

X11SDV-4C-TP8F

    1. Intel® Xeon® Processor D-2123IT
    2. System on Chip
    3. Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, in 4 DIMM slots
    4. 1 PCI-E 3.0 x8,
      1 PCI-E 3.0 x16
      M.2 Interface: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2
      M.2 Form Factor: 2242/2280
      M.2 Key: M-Key, B-Key
      U.2 Interface: 2 PCI-E 3.0 x4,
      2 PCI-E 3.0 NVMe x4 Internal Port(s)
    5. 1 VGA D-Sub Connector port
    6. SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    7. Quad LAN with Intel® Ethernet Controller I350-AM4
      Dual LAN with 10G SFP+ LAN via SoC
      Dual LAN with 10Gbase-T
    8. Supports 12V DC power input
