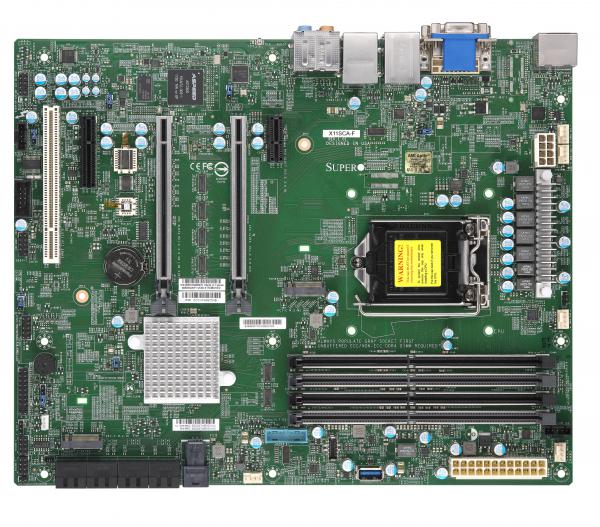

X11SCA-F

    1. Intel® 8th/9th Generation Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® series Processor, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
    2. Intel® C246
    3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    4. 1 PCI-E 3.0 x4,
      1 PCI-E 3.0 x1,
      2 PCI-Ex16 slots are running at NA/16, or 8/8
      1 - 5V PCI 32bit
      M.2 Interface: 2 PCI-E 3.0 x4
      M.2 Form Factor: 2242/2260/2280/22110
      M.2 Key: M-Key
      M.2#1~2 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
      U.2 Interface: 1 PCI-E 3.0 x4
    5. 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
      Intel UHD P630 graphic(For CPU Xeon E-21XXG series only)
    6. Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    7. Single LAN with Intel® Ethernet Controller I210-AT
      Shared with IPMI
      Single LAN with Intel® PHY I219LM LAN controller
