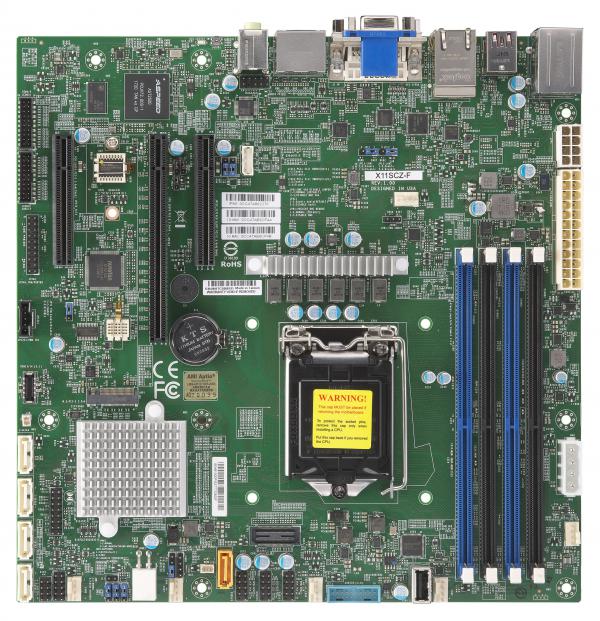

X11SCZ-F

    1. 8th Generation Intel® Core™ i3 Processor, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
    2. Intel® C246
    3. Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
    4. 1 PCI-E 3.0 x16,
      2 PCI-E 3.0 x4 (in x8 slot)
      M.2 Interface: 1 SATA/PCI-E 3.0 x4
      M.2 Form Factor: 2280/22110
      M.2 Key: M-Key
    5. 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
      3 Independent Displays
    6. Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    7. Single LAN with Intel® Ethernet Controller I210-AT
      Single LAN with Intel® PHY I219LM LAN controller
