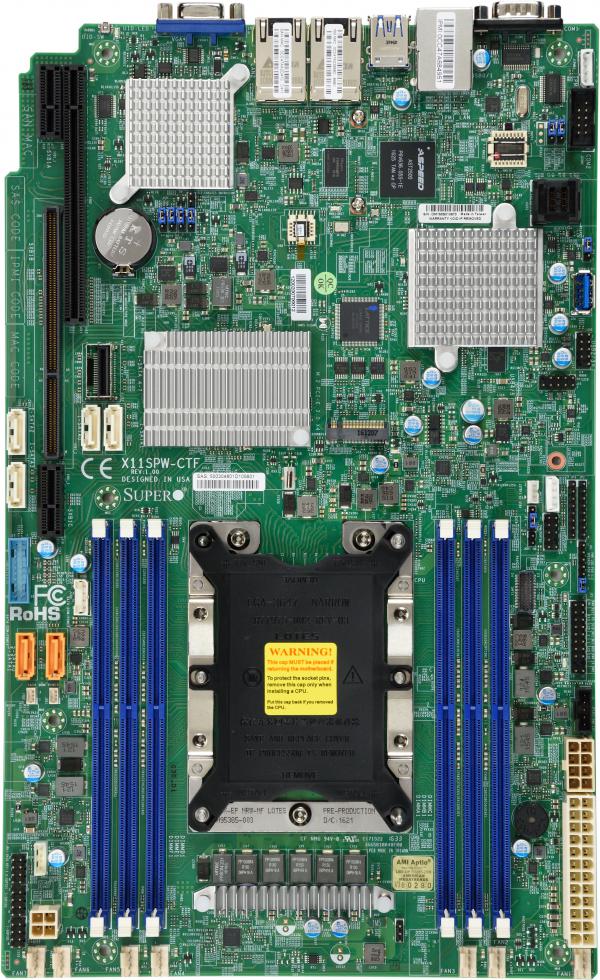

X11SPW-CTF

    1. Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W
    2. Intel® C622 chipset
    3. Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots
    4. Expansion slots:
      1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot
    5. 4 SAS3 (12Gbps) via Broadcom® 3008; RAID 0, 1, 10
    6. 2 10GbE LAN ports
    7. 10 SATA3 (6Gbps) via C622
    8. I/O: 1 VGA, 2 COM, TPM header
    9. 2 SuperDOM with built-in power
    10. M.2 NGFF connector
      M.2 Interface: PCI-E 3.0 x4 and SATA
      Form Factor: 2280, 22110
      Key: M-Key
      Double Height Connector
