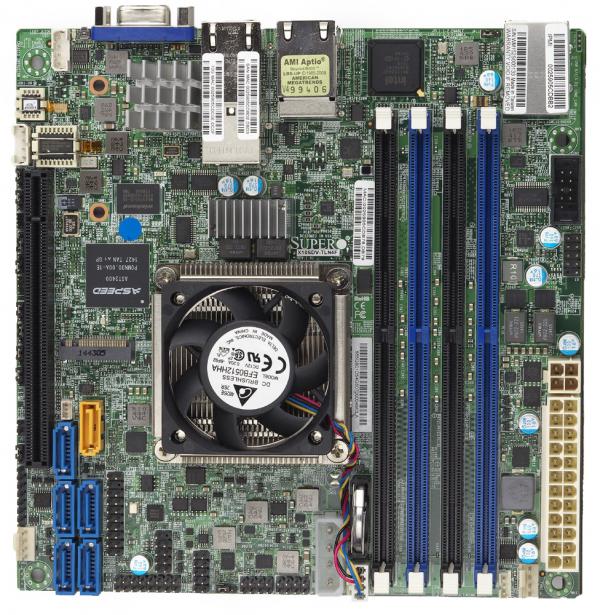

X10SDV-12C+-TLN4F

    1. Intel® Xeon® processor D-1567, Single socket FCBGA 1667; 12-Core, 24 Threads, 65W
    2. System on Chip
    3. Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
    4. 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
    5. 2 10GbE and 2 GbE LAN ports
    6. 6 SATA3 (6Gbps) ports via SoC
    7. 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
    8. 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
    9. 12V DC Input and ATX Power Source
