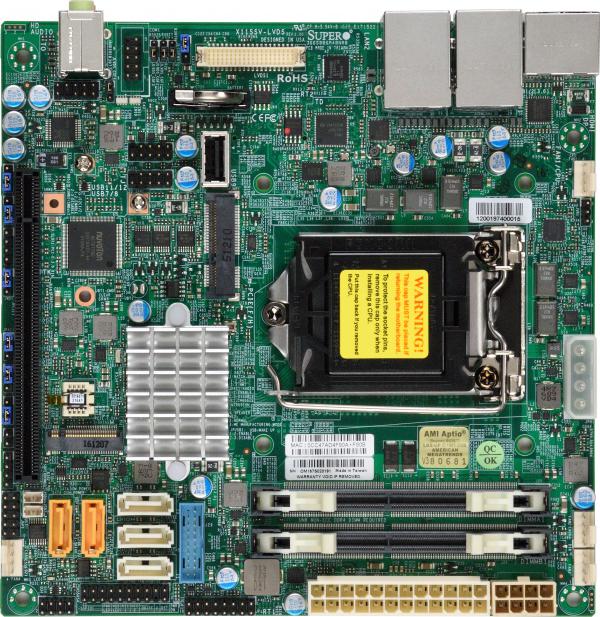

X11SSV-LVDS

    1. Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core i7/i5/i3 series,Intel® Celeron® and Intel® Pentium®
    2. Intel® Q170 Express chipset
    3. Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
    4. 1 PCI-E 3.0 x16, Mini-PCI-E (mSATA support)M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/80
    5. Dual GbE LAN w/ Intel i219LM + i210AT
    6. 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays
    7. 5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
    8. 2 SATA DOM, 1 COM,TPM header,ALC 888S HD Audio
    9. AMT, vPro
    10. Supports 12V DC power input
