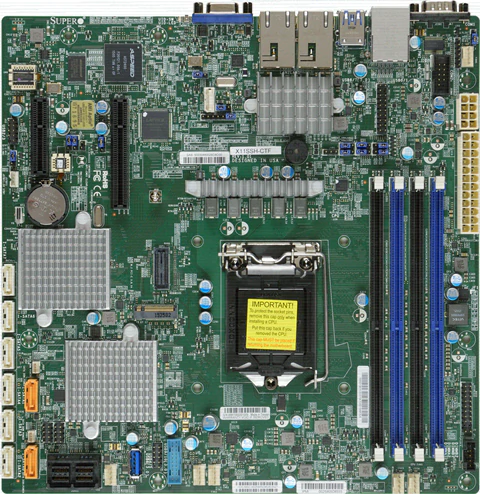

X11SSH-CTF

    1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
      Intel® Celeron® and Intel® Pentium®
    2. Intel® C236 chipset
    3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    4. Expansion slots: 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x2 (in x4)
    5. Dual 10GBase-T LAN with Intel® X550
    6. 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
    7. 8 SAS3 (12Gbps) via Broadcom® 3008; RAID 0, 1, 10
    8. I/O: 1 VGA, 2 COM, TPM header
    9. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
    10. M.2 NGFF connector
      M.2 Interface: SATA and PCI-E 3.0 x4
      Form Factor: 2260
      Key: M-Key
      Double Height Connector
